RVS300VF Vortex Sump Pump w Vertical Float

Model Number: RVS300VF
Max flow: Tooltip 300 L/min
Head/Draw: Tooltip 10m
Inlet/Outlet size: 50mm
Solids handling: 30mm
Cable length: 10m
Horse power: Tooltip 240v. 0.4kw
Amp draw: 4 amps
Voltage: 240 volt
Packaging Size (cm): 22 x 22.5 x 39cm
Packaging Weight (kg): 13kg
Liquid to be pumped: Waste - Clear - Storm - Grey Water
$ 906.00
Add to Cart
Rating: Not Rated Yet

High performing Reefe RVS300VF submersible vortex sump pump with vertical float for versatility. A reliable, heavy duty, stormwater, sump and drainage pump ideal for wastewater treatment systems, confined spaces, small or shallow pits and sumps and narrow irrigation chambers where a high head is required. Also commonly used in pump stations and pre-assembled domestic stormwater pump pit kits.


  • Wastewater treatment systems
  • Confined spaces
  • Small or shallow pits / sumps
  • Narrow irrigation chambers

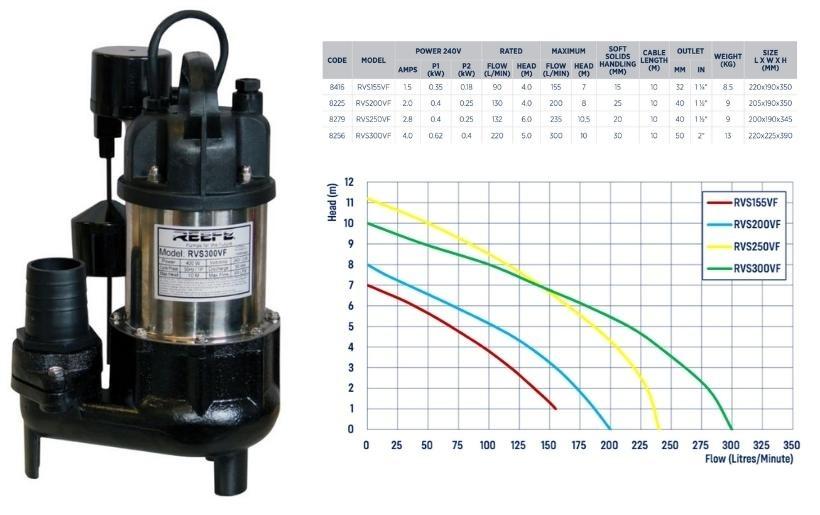

Reefe RVS300VF vortex sump pump specifications and performance graph Water Pumps Now Australia

Features and Benefits

  • Low power consumption
  • Thermal overload protection
  • Soft solids handling 15mm (155), 25mm (250), 30mm (300)
  • High performance
  • H05RN-F 10m power cable
  • Includes hosetail
  • Maximum liquid temperature 40°C
  • Adjustable "stop" vertical float switch
  • 2 year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41


  • Stainless steel motor housing and shaft
  • Cast iron vortex impeller
  • Dual mechanical seal in oil chamber
  • Cast iron base and outlet
  • Minimum pit dimension 300mm sq (RVS155VF, RVS200VF, RVS250VF)
  • Minimum pit dimensions 400mm sq (RVS300VF)
  • Ingress protection IP68
  • Insulation Class B - RVS155VF
  • Insulation Class F - RVS200VF, RVS250VF and RVS300VF
