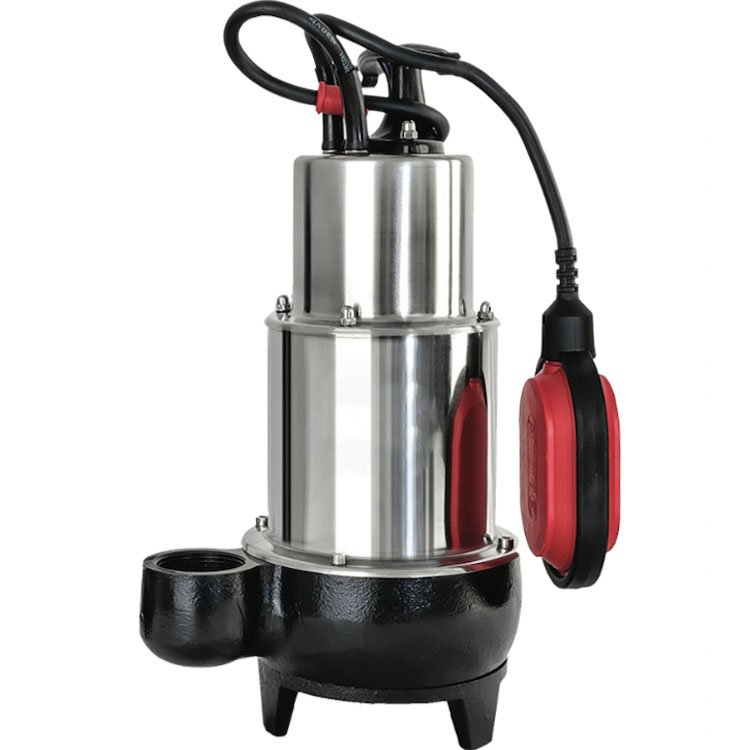

Reefe RCE90 Cutter Pump

Model Number: RCE90
Head/Draw: Tooltip 11.4m
Max flow: Tooltip 6.72 L/sec, 403 L/min
Solids handling: 30mm
Inlet/Outlet size: 40mm
Horse power: Tooltip 0.75HP, 0.55kw
Amp draw: 3.8 amp
Voltage: 240 volt
Cable length: 10m
Packaging Size (cm): 22 x 16 x 38cm
Packaging Weight (kg): 11kg
Liquid to be pumped: Sewage - Drainage - Farm - Trade Waste
$ 1400.00
INCL GST
Add to Cart

The Reefe RCE90 cutter pump features a superior design for the drainage of dirty water. The motor is precision engineered with stringent quality control for maximum reliability and efficiency. European made, these heavy duty cutter pumps are constructed to withstand high demands, guaranteeing a long service life.

REEFE RCE90 Cutter Pump Applications

  • Trade Waste
  • Drainage
  • Waste treatment facilities
  • Domestic sewage, without sanitary items or wipes
  • Animal waste

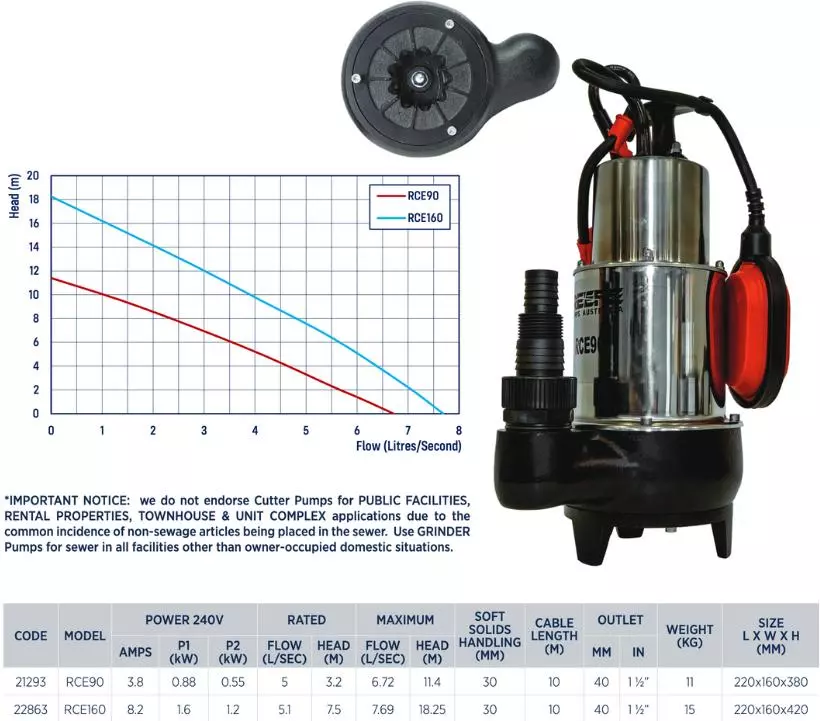

Reefe RCE90 cutter pump specifications and performance graph

REEFE RCE90 Cutter Pump Features

  • Durable, corrosion proof materials for resistance to sewage
  • Integrated float switch for auto start/stop function
  • Maximum head up to 18m
  • Maximum immersion depth of 5m
  • Soft solids handling up to 30mm
  • Thermal overload protection - Auto reset
  • Over current protection - Manual reset by disconnecting from power
  • 1 Year warranty
  • Electrical Safety Approval to AS/NZS 60335.2.41
  • Maximum liquid temperature 35°C
  • Maximim ambient temperature 40°C

REEFE RCE90 Cutter Pump Construction

  • Stainless steel pump casing and shaft
  • Cast iron hydraulic cutter and impeller
  • Ceramic-silicon axial seal
  • 10m H07RN-F Cable
  • Ingress Protection IP68
  • Insulation Class F
